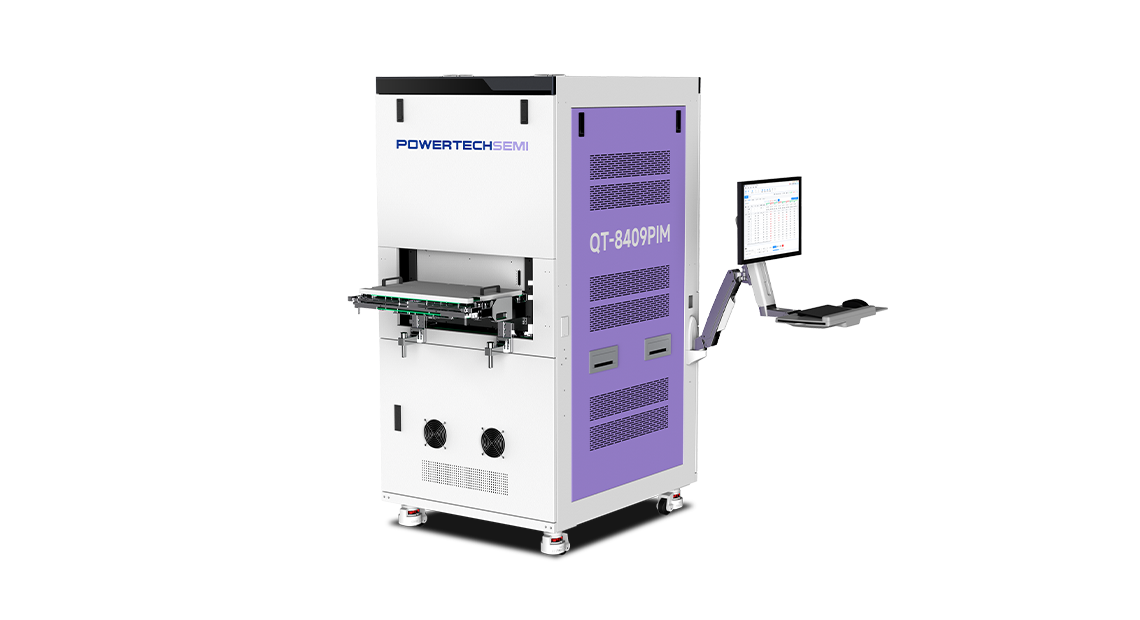

QT-8409PIM high-power dynamic and static comprehensive test system
QT-8409PIM test system, applied to IGBT/SiC power modules, meets dynamic and static parameter testing
|
High-speed short-circuit protection |
Low stray |
Flexible tooling |
Suitable for mass production/manual test |
|
Type |
QT-8409PIM |
| Advantages |
Industry-leading short-circuit protection speed, effectively protecting the socket; low stray; fast replacement of different packages |
| Main Features |
? Support 4 (DC/AC) stations ? Stray inductance LS<30nH ? AC: SW, TRR, ISC, QG, RBSOA test ? AC @3000A 1500V, ISC 12kA ? DC @2000A 2kV/3kV/6kV/8kV ? Short-circuit protection <1uS ? Test objects: PIM IGBT modules, SiC modules, DBC, three-level products, etc. |
